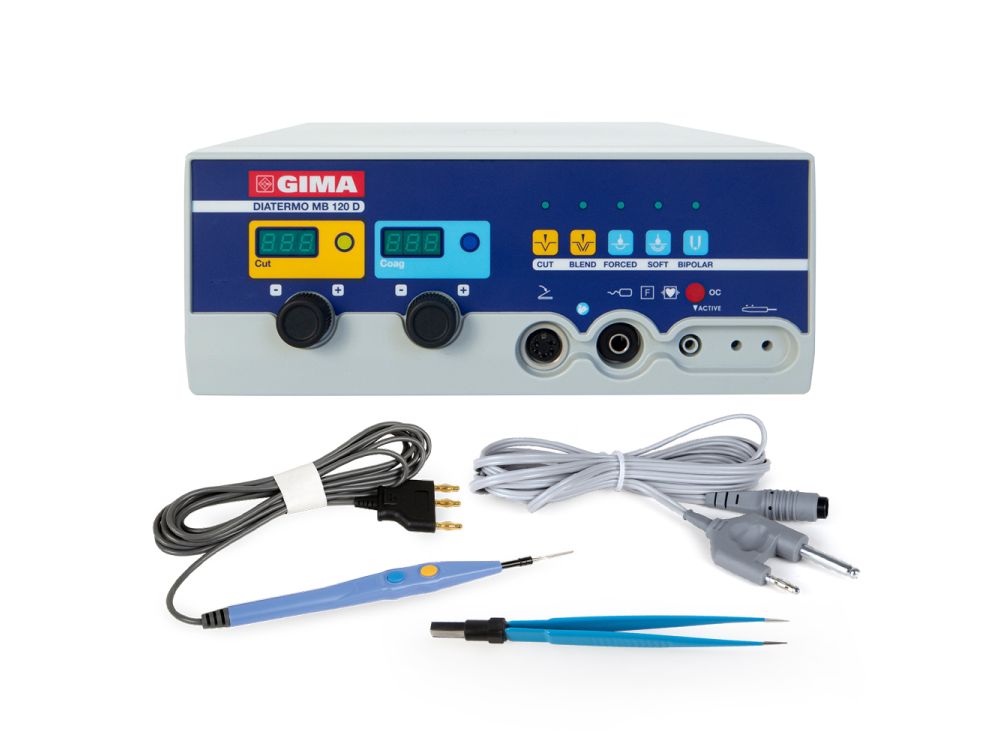

Gima Diatermo MB Electrosurgey Unit & Accessories

Gima Diatermo MB Electrosurgey Unit & Accessories

From £29.99

To £2,346.68

SKU: GIMA-MB120D-bundle*



Flexible Finance
Options Available

On all orders over £500, call our sales team
to discuss 01622 834300

*Subject to status. Terms and conditions apply

A HF electrosurgical unit for performing middle monopolar or bipolar electrosurgery.
Customize Gima Diatermo MB Electrosurgey Unit & Accessories

* Required Fields

Your Configuration
    - +

    £29.99

    Details

    A HF electrosurgical unit for performing middle monopolar or bipolar electrosurgery.



    The modes of operation they provide are pure cut, coagulated cut, forced coagulation, soft coagulation and, with forceps, bipolar coagulation.

    The use of either split of normal neutral plate is allowed.

    Leading technology enables highly professional surgery intervention thanks to ergonomic, plus safety features derived from high power theatre apparatus.

    An open circuit alarm warns the user that connection into the neutral plate has not been made or that the cable is disconnected or the neutral plate is not in contact with the patient. The alarm is signalled by an intermittent beep, together with a flashing red light on the front panel.

    OVT alarm: the unit includes an internal circuit protection warning when the current delivery is exceeding.



    Technical Specifications:



    GIMA 122MBD:

    • Minimum preselect able power: 0
    • Level step: 1
    • Maximum output power CUT (W): 120 250 Ohm
    • Maximum output power BLEND (W): 90 200 Ohm
    • Maximum output power COAG FORCED (W): 80 150 Ohm
    • Maximum output power COAG SOFT (W): 60 100 Ohm
    • Maximum output power BIPOLAR (W): 40 100 Ohm
    • Working frequency: 600 kHz
    • Weight kg: 7
    • Size LxHxD mm: 260 x 110 x 265
    • Operating voltage (switchable): 115 -230
    • Mains frequency (Hz): 50-60
    • Fuses 230Vac (5x20) TIMED: 2 x 3,15A
    • Fuses 115Vac (5x20) TIMED: 2 x 6,3A
    • Electrical input power (VA): 300
    • Electrical input current (230 Vac) (A): 1,3
    • Electrical input current (115 Vac) (A): 2,6
    • Five steps adjustable sound level (from 55- to 75dBA): YES
    • Self-check: YES
    • Power accuracy output warning: YES
    • Split or not split patient plate allowed: YES
    • Last working condition storing: YES
    • Electrical Class (EN60601 - 1): I CF
    • MDD 93/42/EEC Class: II B
    • Patient circuit: F

    GIMA 160MB:

    • Minimum preselect able power: 0
    • Level step: 1
    • Maximum output power CUT (W): 160 250 Ohm
    • Maximum output power BLEND (W): 90 200 Ohm
    • Maximum output power COAG FORCED (W): 80 150 Ohm
    • Maximum output power COAG SOFT (W): 60 100 Ohm
    • Maximum output power BIPOLAR (W): 40 100 Ohm
    • Working frequency: 600 kHz
    • Weight kg: 7
    • Size LxHxD mm: 260 x 110 x 265
    • Operating voltage (switchable): 115 -230
    • Mains frequency (Hz): 50-60
    • Fuses 230Vac (5x20) TIMED: 2 x 3,15A
    • Fuses 115Vac (5x20) TIMED: 2 x 6,3A
    • Electrical input power (VA): 300
    • Electrical input current (230 Vac) (A): 1,3
    • Electrical input current (115 Vac) (A): 2,6
    • Five steps adjustable sound level (from 55- to 75dBA): YES
    • Self-check: YES
    • Power accuracy output warning: YES
    • Split or not split patient plate allowed: YES
    • Last working condition storing: YES
    • Electrical Class (EN60601 - 1): I CF
    • MDD 93/42/EEC Class: II B
    • Patient circuit: F

    More Information
    More Information
    Animal Mixed
    SKU GIMA-MB120D-bundle*
    Cut Modes pure cut, coagulated cut, forced coagulation, soft coagulation, bipolar coagulation
