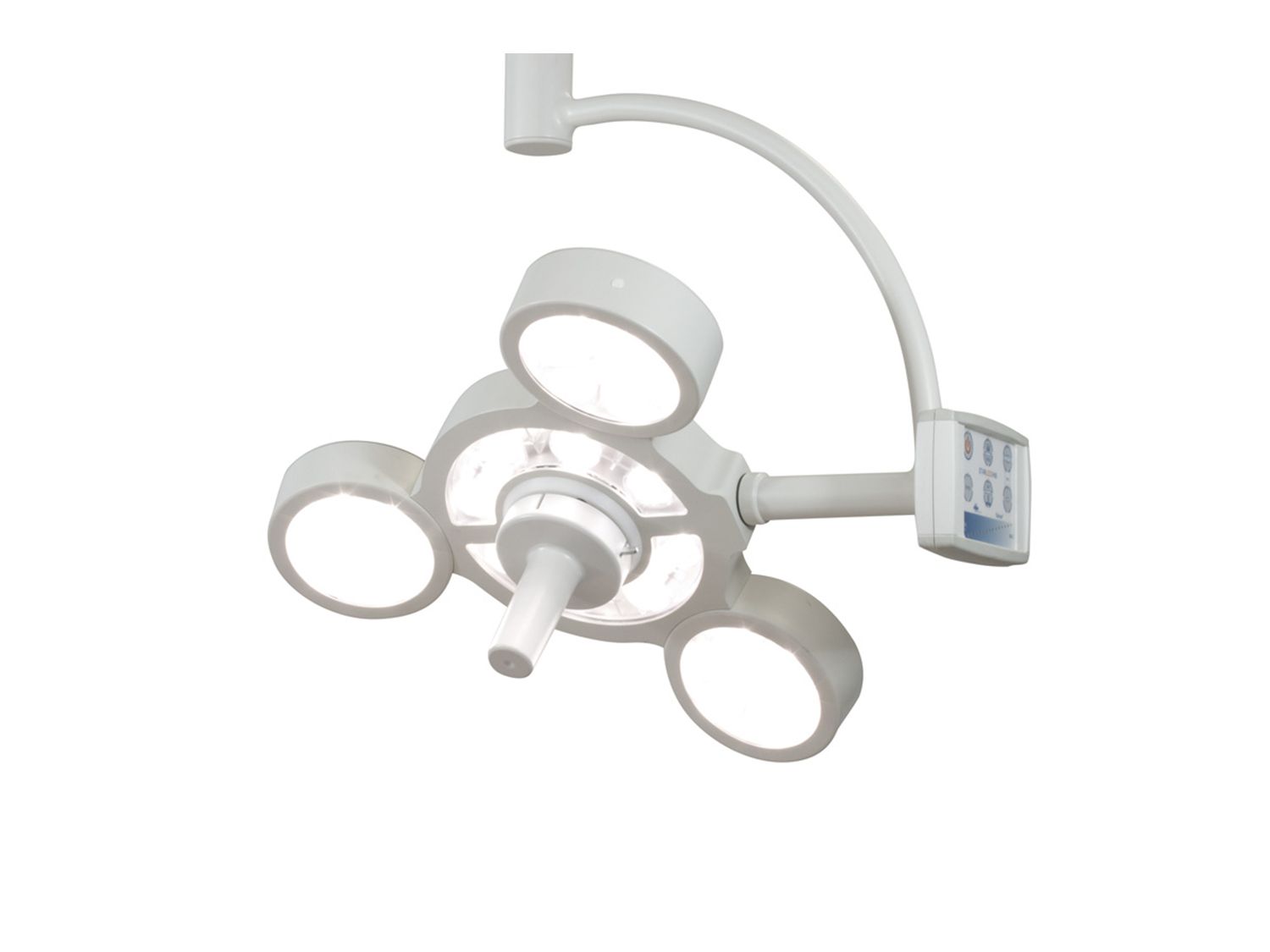

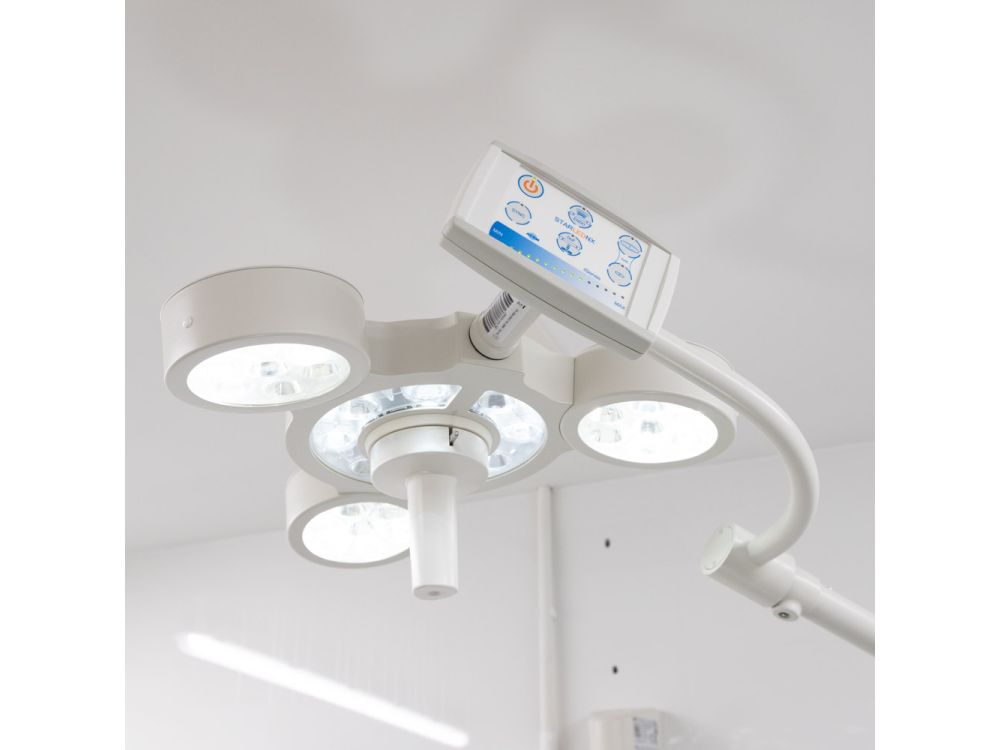

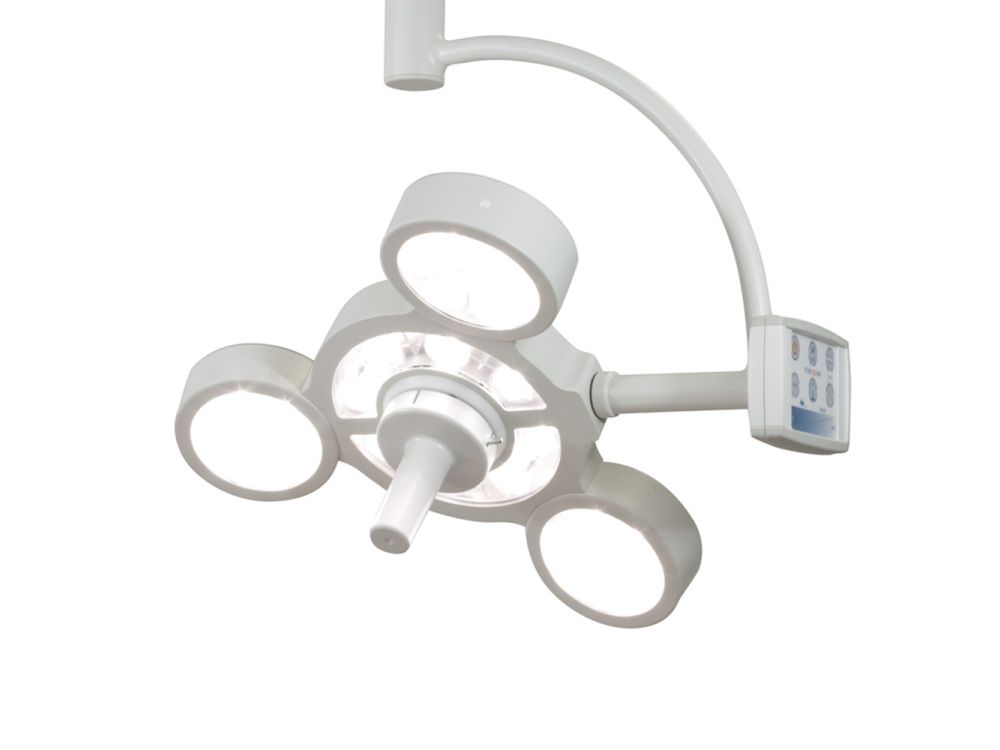

The STARLED 3NX offers a shadowless light thanks to its special LED optics, that directs light beams to exactly where the surgeon needs

Its next generation LEDs produce an unparalleled quality of light with a colour temperature (CCT) of 4.500°K and a colour rendering index (CRI) of 95. The STARLED3 NX has a light intensity of 130.000 lux with a low energy consumption of 69W. The added unique ENDO function (light for endoscopy) allows STARLED3 NX to be used for minimal-invasive surgery.

The STARLED3 NX is composed of three reflectors that produce a well-blended and intense cone of light, which are focusable through the automatic adjustment of the light spot diameter. The lamp is ergonomic, easy to move and to position. The easy-to-clean shape, material of STARLED3 NX and the removable, sterilisable handle means you can be assured of excellent infection control.

Functions are adjusted by its innovative I-SENSE® control panel, with a simple touch you can manage easily and accurately control:

• ON/OFF function
• Light intensity adjustment
• DoF - Depth of field
• ENDO - Light for endoscopy ideal for minimal invasive surgery
• SIZE - Light spot diameter adjustment to focus the operating area
• SYNC - Function (optional) useful to synchronize controls of the combined lamps: STARLED3 NX double tandem and STARLED3 NX together with STARLED5 NX.

Key Features

• Light source - LED
• Average life - 50.000 hrs
• Lighting at the centre, Ec @ 100 cm - 130.000 lux
• Light adjustment  - from 5 % to 100%
• Colour temperature, CCT - 4.500°K
• Colour rendering index, Ra - 95
• Index R9 - >90
• Light field diameter - 24 - 33 cm
• Focusable working distance - 70 - 150 cm
• Handle - Removable and sterilizable

Technical Features

• Product Class (EN 60601 -2-41) -  I
• Power Supply - 100 - 240 VAC ± 10%
• Power consumption - 69 W
• Frequency - 50/60 Hz
• Lighting at the centre, Ec @ 100 cm - 130.000 lux
• Chromaticity coordinates - x = 0.365 , y = 0.370
• Light field diameter - 24 - 33 cm
• Focusable working distance - 70 - 150 cm
• Lighting depth L1+ L2 (20%) - 117 cm
• Lighting depth L1+ L2 (60%) - 71 cm

Dimensions

• Light head weight - 4 Kg
• Light head diameter - 50 cm
• Low ceiling height arm (LCH) - Optional

STARLED3 NX is available in the following versions:

Ceiling Mounted (single, double configuration or together with other STARLED NX lamps)

Wall Mounted

Trolley Mounted (Battery Backup versions available)
